Engine mounts

Assembly

Install the lower mount first, then the mount at the gearbox, and then the upper mount.

2 l
2,2 l
1Mounting brackt
2Support flange
3Support yoke
4Suspensn strut
5Adjustment shim
6Adjustment shim
7Spacer
8Protector
9Capscrew
10Capscrew

Motorfester

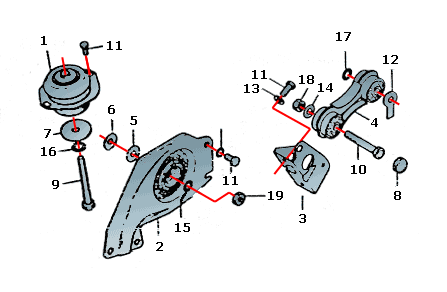

The drawing is borrowed from the Citroën CX' parts list

The mount on the left is the lower engine mount, and the most difficult to replace. The one in the middle is attached to the gearbox, and the one on the right is the upper attachment.



11Tapping screw
12Adjustment shim
13Spring washer
14Plain washer
15Spring washer
16Spring washer
17Plain washer
18Hexagonal nut
19Hexagonal nut
2,5 l injection
2,5 l injection turbo
1Mounting brackt
2Support flange
3Support yoke
4Suspensn strut
5Adjustment shim
6Adjustment shim
7Spacer
8Protector
9Capscrew
10Capscrew

Motorfester
The drawing is borrowed from the Citroën CX' parts list



11Tapping screw
12Tapping screw
13Adjustment shim
14Washer
15Plain washer
16Spring washer
17Spring washer
18Self lockg nut
19Hexagonal nut
Gazole 2,5 l
Gazole 2,5 l turbo
1Mounting brackt
2Support flange
3Support yoke
4Suspensn strut
5Adjustment shim
6Adjustment shim
7Spacer
8Protector
9Capscrew
10Capscrew

Motorfester
The drawing is borrowed from the Citroën CX' parts list



11Tapping screw
12Tapping screw
13Adjustment shim
14Spring washer
15Plain washer
16Spring washer
17Spring washer
18Self lockg nut
19Hexagonal nut
