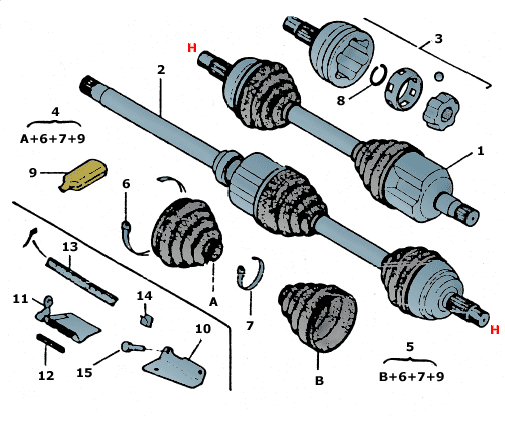

1 is the left-hand drive shaft, and 2 is the right-hand. The road wheels are mounted on H.
The inner and outer boot protectors are different.


A sign of worn-out drive shafts is vibrations in the gear lever.


Sauf anti.bloc.roue
1 Drive-shaft new
2 Drive-shaft new
3 Wheel swiwel
4 Boot protecting
5 Boot protecting
6 Boot clamp
7 Boot clamp
8 Dr shf snap-rg
9 Grease
10 Protector


Drivaksling
The drawing is borrowed from the Citroën CX' parts list


11 Protector
12 Section
13 Section
14 Clip
15 Capscrew


Anti.bloc.roue
1 Drive-shaft new
2 Drive-shaft new
3 C V joint
4 Boot protecting
5 Boot protecting
6 Boot clamp
7 Boot clamp
8 Dr shf snap-rg
9 Grease
10 Protector


Drivaksling
The drawing is borrowed from the Citroën CX' parts list


11 Protector
12 Section
13 Section
14 Clip
15 Capscrew
