The form is derived from the CX2 service manual.

To rotate the engine:
  1. Put the car in the highest position.
  2. 5th gear.
  3. Handbrake off.
  4. Stop pads under the rear wheels.
  5. Jack up the right front side.
  6. Remove the spark plugs.
  7. Turn the wheel around in the direction of travel.

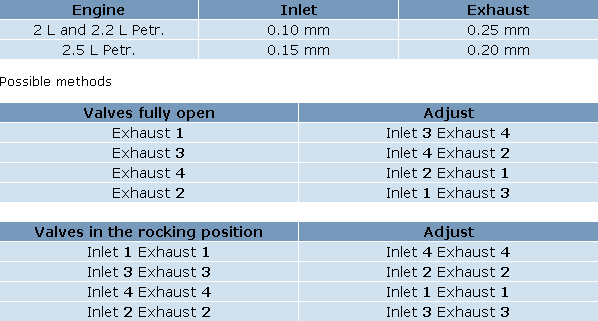

Valve adjustment

Ventilar


• Valve adjustment must be done with the engine cold.

• Twist out the two blades to be used, and mark them with colored tape, for example blue for in and red for out.
