Front axle
PARTS
Norsk

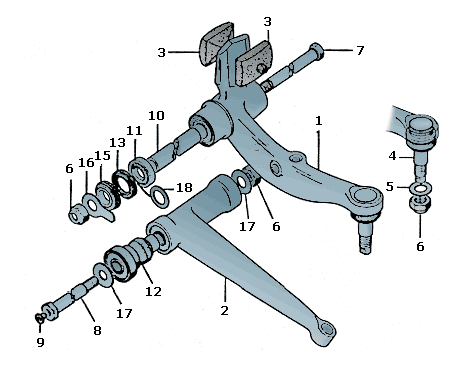

1 Front arm
2 Front arm
3 Rest stop
4 Arm ball-joint
5 Plain washer
6 Self lockg nut
7 Arm shaft
8 Arm shaft
9 Plug
10 Arm spacer


Forstilling
The drawing is borrowed from the Citroën CX' parts list



11 Arm bearing
12 Wishbone bush
13 Rubber seal
14 [Front arm assy]
15 Cup
16 Adjustment shim
17 Adjustment shim
18 Adjustment shim

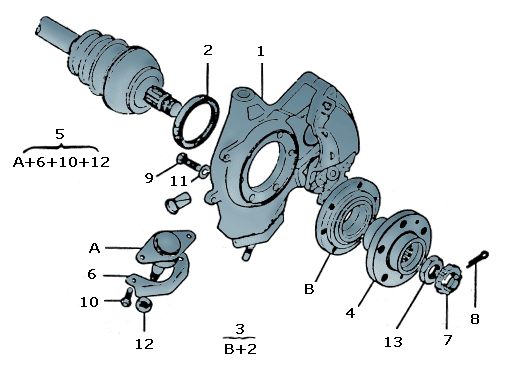

1 Frt swivel pin
2 Wheel hub seal
3 Whl hub bearing
4 Wheel hub
5 Pin ball-joint
6 Guard sheet met
7 Locking nut
8 Pin
9 Capscrew
10 Capscrew


Forstilling

The drawing is borrowed from the Citroën CX' parts list



11 Spring washer
12 Self lockg nut
13 Fixing nut


Forstilling
The drawing is borrowed from the Citroën CX' parts list
