Exhaust
PARTS
Norsk

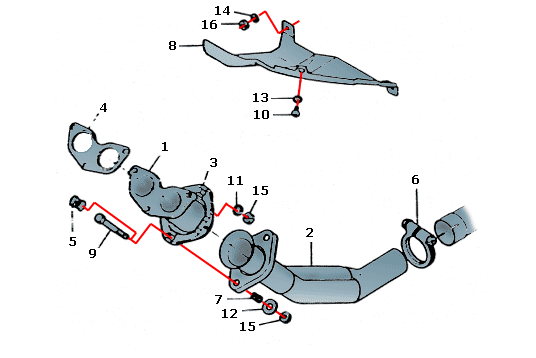

FRONT 2L 2,2L

1 Exh manifold
2 Exhaust ft pipe
3 Frt pipe flange
4 Frt pipe gasket
5 Frt pipe flange
6 Fixing clamp
7 Pipe spring
8 Heat shield
9 Capscrew
10 Tapping screw


Exhaust
The drawing is borrowed from the Citroën CX' parts list



11 Plain washer
12 Plain washer
13 Spring washer
14 Spring washer
15 Hexagonal nut
16 Hexagonal nut

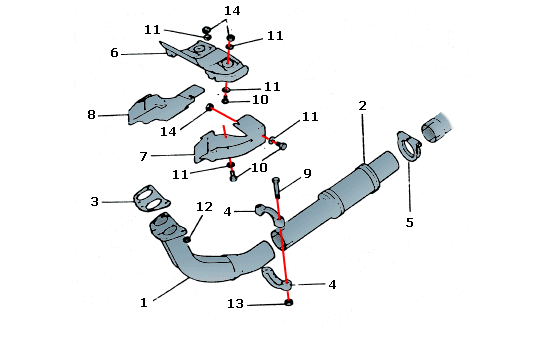

FRONT Berline Break 2,5L INJECTION

1 Exhaust ft pipe
2 Flexible pipe
3 Frt pipe gasket
4 Fixing clamp
5 Fixing clamp
6 Heat shield
7 Heat shield
8 Heat shield
9 Capscrew
10 Capscrew


Exhaust

The drawing is borrowed from the Citroën CX' parts list



11 Piston washer
12 Pipe nut
13 Hexagonal nut
14 Hexagonal nut

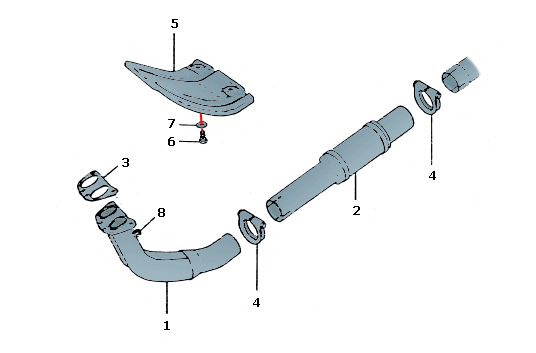

FRONT Gazole 2,5L

1 Exhaust ft pipe
2 Flexible pipe
3 Frt pipe gasket
4 Fixing clamp
5 Heat shield
6 Capscrew
7 Washer
8 Pipe nut


Exhaust
The drawing is borrowed from the Citroën CX' parts list

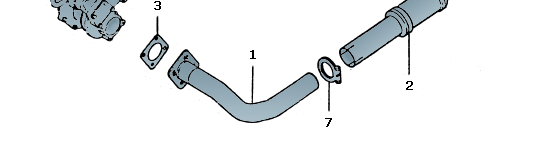

FRONT Gazole 2,5L Turbo

1 Exhaust ft pipe
2 Exhaust pipe
3 Frt pipe gasket
4 Heat shield
5 Heat shield
6 Heat shield
7 Fixing clamp


Exhaust Exhaust Exhaust
The drawing is borrowed from the Citroën CX' parts list

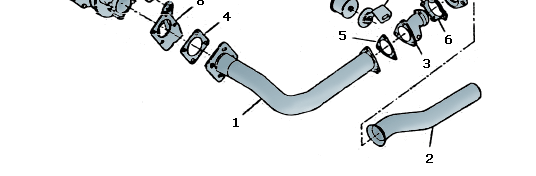

FRONT Gazole 2,5L Turbo

1 Exhaust ft pipe
2 Exhaust pipe
3 Exht pipe ball
4 Frt pipe gasket
5 Frt pipe gasket
6 Frt pipe flange
7 Frt pipe flange
8 Pipe bracket
9 Pipe bracket
10 Pipe bracket


Exhaust Exhaust Exhaust

The drawing is borrowed from the Citroën CX' parts list



11 Pipe bracket
12 Heat shield
13 Heat shield
14 Heat shield
