Checking the level




MANUAL

  1. The car must be parked on a level surface, and the engine must be cold.
  2. Pull up the dipstick (under the spare wheel) and wipe it with a paper.
  3. Put it back carefully (use a torch) and wait a bit.
  4. Pull it up again and read the oil level. It must be between the two measuring lines.
  5. If it is too little, you fill in a little, if it is too much, you drain a little.


Check the oil level three to four times a year.


Oil change

Tip: Perhaps the synchronization will last longer on a 4-speed gearbox, if you use oil designed for C-matic.

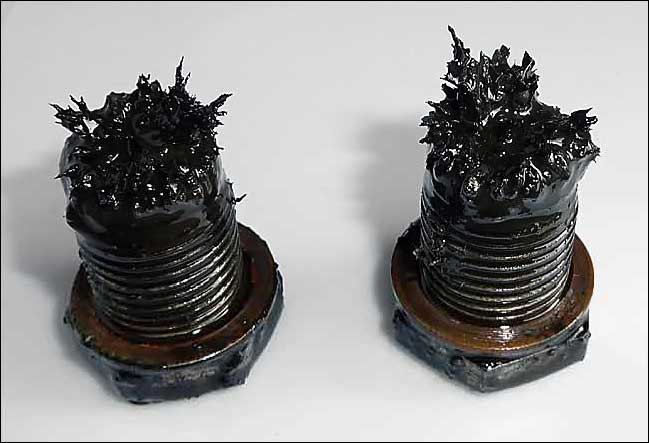

Hairy bottom plugs.


MANUAL

  1. With warm engine: Drain the oil.
  2. Remove metal shavings from the bottom plugs, clean them and put them back fitted with new copper stop washers.

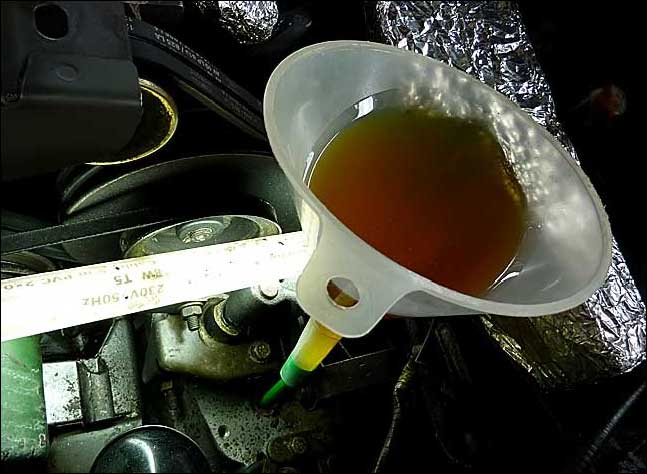

  3. Use a funnel and fill with new oil.
  4. Wait 10 minutes, change gears 10-12 times and check the level.

It is easiest to fill up with oil where the reversing light switch is located. Remember to clean well before unscrewing it.

Gear oil MANUAL 4 GEAR MANUAL 5 GEAR
Type • SAE 80 EP
• TOTAL TRANSMISSION 75W/80W
• TOTAL EP 80
• TOTAL TRANSMISSION 75W/80W
Volume 1.6 liters 1.75 liters
Difference min/max on the dipstick 0.15 liters 0.15 liters
Number of bottom plugs 2 2
Tightening bottom plugs 4 mdaN (40 Nm) 4 mdaN (40 Nm)
