Suspension
REAR
Norsk


1 Suspension syl
2 Suspensn sphere
3 Rod + articulatn
4 Cylinder pin
5 Dust guard
6 Boot clamp
7 Boot clamp
8 Cyl felt seal
9 Susp cyl seal
10 Suspension seal


Fjøring bak

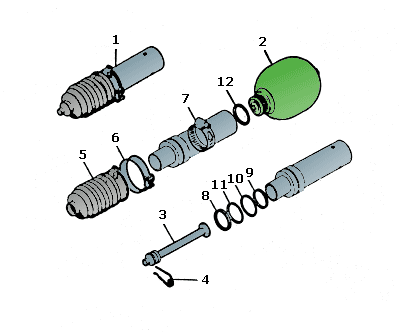

The drawing is borrowed from the Citroën CX' parts list


11 Susp cyl o-ring
12 Susp cyl o-ring


There shall be some LHM (25cc) inside the bellows.

Greasing of the suspension piston con-rod joint:
(Carried out with LHM liquid contained in the dust cover)
- Front suspension cylinder .................... 7 cm3
- Rear suspension cylinder .................... 25 cm3


From the service manual for series 1. Cc = cm3 = ml.)

Trakt

Attach shrink plastic at the end of a small funnel. Remove the front hose and fill up.
