The left-hand drive shaft

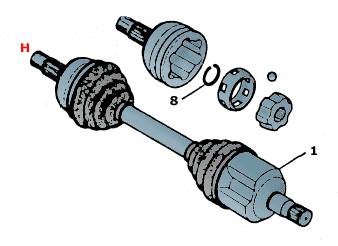

Only the left-hand drive shaft has a locking ring. (It is not included in the drawing, but looks like 8 and is placed on the right-hand side of 1. It is important to put on the correct locking ring; the locking rings for the drive knots are too big.)

• The left-hand drive shaft requires some force to get out, so use a sliding hammer.

• The road wheel is mounted on H.
