• Is the used oil as shiny and nice as when it was new?
— Not good.

• Does the oil turn black?
— This is good, because then it means that the oil has taken impurities with it.

Engine oil

THE ENGINE OIL is important. It must lubricate, carry away impurities and, to a certain extent, cool the engine. Change the oil and oil filter often enough, and use good quality oil.

Diesel engines and turbos place extra high demands on the oil.

Always make sure, every time you start, not to step on the gas pedal before the car has lifted up. It is very important not to add load to the engine before the oil has started to circulate properly.


When topping up oil, look at the underside of the cap. If it has a creamy gray-white coating, you probably need to replace the head gasket. Another warning of a faulty head gasket is when the cooling water decreases and the oil rises.

10W—30

10W tells how viscous the oil is at -18°C. The higher the number, the thicker the oil. If you live in a cold place, you should use 5W oil in winter, the engine will then get better lubrication when starting from cold.

30 tells how viscous the oil is at 100°C. If the engine uses oil when you have 30 oil, you can try changing to 40 oil, which is thicker. It may also help to change to thicker oil if you get blue smoke from the exhaust when you start the engine.

You do of course use an engine heater in the winter?

Lurium

• Should you have additives in the oil?
— Maybe, maybe not. It can work against its purpose if the additive and the oil are not compatible.

Pro-Long and QMI may be worth considering.

Control

Don't rely too much on the meter inside the car (if it works at all).

The car must be parked on a level surface, and the engine must be cold. Pull up the dipstick and wipe it with a paper. Put it back in and wait a bit. Pull it up again and read the oil level. It must be between the two measuring lines. If it is too little, you fill in a little, if it is too much, you drain a little.
NB! It is very important that the level is not above the top line.

— How often?

Minimum every weekend.
Incidentally, you can never check the level too often.

Oil change

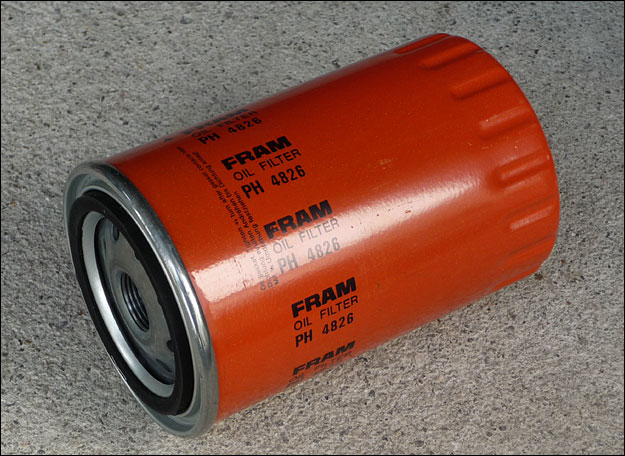

Oil filter for CX diesel.

• The bottom plug is easiest to loosen with a large pair of wisegrip pliers.

  1. The engine must be warm or lukewarm.
  2. Raise the car to the highest position and place solid jack stands under the front jack mounts (and preferably also under the rear ones if it has a tendency to sink back down quickly).
  3. Pull the dipstick up a little and loosen the oil filler cap.
  4. Drain the oil (be careful not to burn yourself; e.g. use winter-lined work gloves).
  5. Remove the old oil filter (you may need to use oil filter pliers).
  6. Fill the new oil filter with new oil.
  7. Wait an hour so that the engine can drain well.
  8. Put on a new gasket (copper disc) and screw in the bottom plug.
  9. Drain the oil out of the new filter (if it is to be mounted upside down), apply oil to the gasket, and screw it on until the gasket barely touches. Then tighten ¾ turn.
  10. Fill in new oil.
  11. Wait 5 minutes and check the level.
  12. Start the engine and check that you have no leaks (the sump plug, the sump, the oil filter).
  13. Remove the jacks and put the car in its normal position.
  14. Write down the mileage and oil type, and that the oil filter has been replaced.
Remember to use gloves (not latex) and safety glasses!

— How often?

Oil at least twice a year: Late autumn and early spring, regardless of mileage. If you do a lot of short driving distances in the winter, and you don't use an engine heater, you should also change it once in the middle of winter.
Oil filters should be replaced once a year on petrol engines, and twice a year on diesel engines.

Engine oil PETROL 2L
M20/616
PETROL 2.2L
M22/617
PETROL 2.4L
M23/623
PETROL 2.4L
M23/622
Volume 4,65 litres 4,65 litres 4,65 litres 4,65 litres
Difference min/max on the dipstick 1,1 litres 1,1 litres 1,1 litres 1,1 litres
Engine oil type DIESEL
M25/660
PETROL 2L
829.A5
PETROL 2.2L
J6T.A500
PETROL 2.5L
M25/659
Down to –16°C • TOTAL SUPER DIESEL
15 W 40
Under –12°C • TOTAL
RUBIA - S - 10 W
Oil filter
Type • Purflux LS 483 • Purflux LS 468 • Purflux LS 468 • Purflux LS 468
Engine oil quantity
Total
Oil change w/ filter 5,6 litres 5,25 litres 5,25 litres 5,3 litres
Oil change 5,0 litres 5,0 litres 5,0 litres 4,6 litres
Difference min/max on the dipstick 0,9 litres 1,5 litres 1,5 litres 1,1 litres
Engine oil type DIESEL TURBO 1
M25/648
DIESEL TURBO 2
M25/669
PETROL TURBO 1
M25/662
PETROL TURBO 2
M25/666
Down to –16°C • TOTAL SUPER DIESEL
15 W 40
• 15 W 40
Under –12°C • TOTAL
RUBIA - S - 10 W
• 10 W 30
Oil filter
Type • Purflux LS 483
• Fram PH 4826
• Purflux LS 483
• Fram PH 4826
• Purflux LS 468 • Purflux LS 468
Engine oil quantity
Total 6,0 liter
Oil change w/ filter 5,6 litres 5,5 litres 5,25 litres 5,25 litres
Oil change 5,0 litres 4,8 litres 4,6 litres 4,6 litres
Difference min/max on the dipstick 0,9 litres 1,8 litres 1,1 litres 1,1 litres
