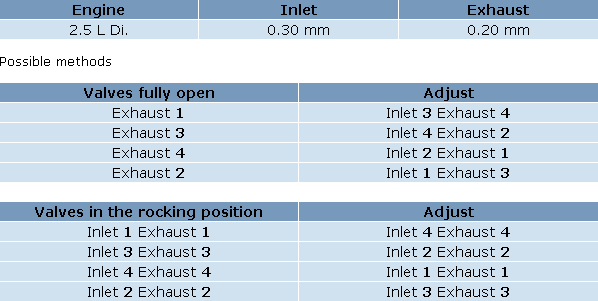

The form
is derived from the CX2 service manual.
|
To rotate the engine:
- Put the car in the highest position.
- 5. gear.
- Handbrake off.
- Stop pads under the rear wheels.
- Jack up the right front side.
- Remove the glow plugs.
- Turn the wheel around in the direction of travel.
|
|
|
Valve adjustment
| Exhaust 4 |
Inlet 4 |
Exhaust 3 |
Inlet 3 |
Exhaust 2 |
Inlet 2 |
Exhaust 1 |
Inlet 1 |
|
|
|
• Valve adjustment must be done with the engine cold.
• Twist out the two blades to be used, and mark them with colored tape, for example blue for in and red for out.
|
|
