Oil


On the passenger side of the oil filter is the oil pressure gauge (1/2), and on the driver's side the oil temperature gauge (3). In addition, there is an electric oil level gauge at the rear of the engine.


Coolant


There is a temperature gauge at the rear of the engine, and by the water pump (not CX2). The thermostat is located where one hose to the radiator is connected to the water pump. On the radiator there is a two-stage thermal contact for the fan(s) (7/8). On the CX2 there is a level gauge in the expansion tank.



1Oil pres switch
2Oil pres switch
3Temperat switch
4Temperat. probe
5Temperat switch
6Sending unit
7Temperat switch
8Temperat switch
9Sending unit
10Cap

Trykksensorar

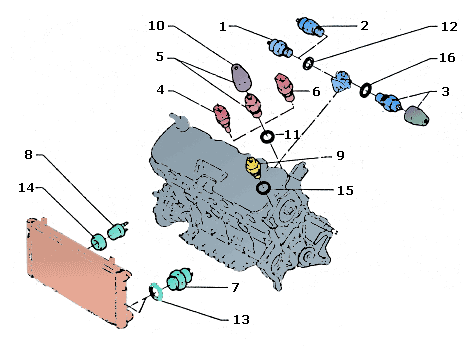

The drawing is borrowed from the Citroën CX' parts list




11Drn plug gasket
12Prss switch seal
13Plug seal
14Plug seal
15Plug seal
16Prss swtch seal
