 PARTS

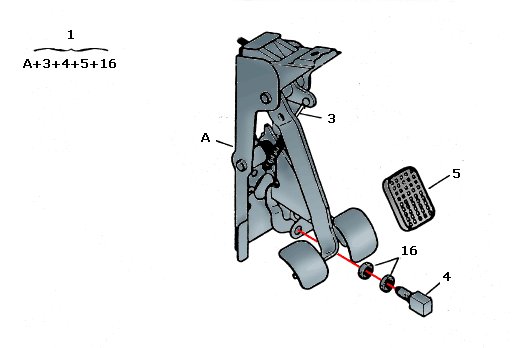

1Toe board assy
3Pedal spring
4Contact switch
5Pedal cover
16Hexagonal nut

Pedalar
The drawing is borrowed from the Citroën CX' parts list

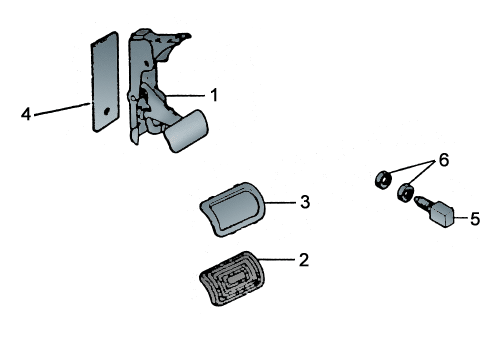

1Toe board assy
2Pedal cover
3Cover moulding
4Plate
5Contact switch
6Hexagonal nut

Pedal
The drawing is borrowed from the Citroën CX' parts list
